HANDHELD WITH EXTREME UV INTENSITY
SB SERIES

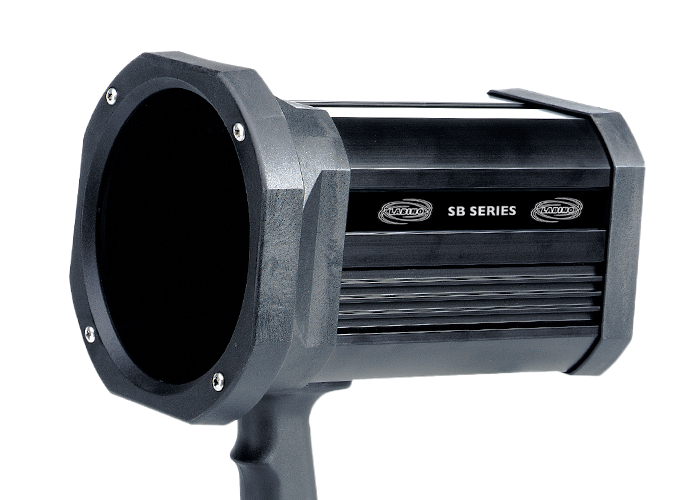

SB Hera is probably the strongest UV-A LED light in the world. It generates more than 90 000 μW/cm2 at a distance of 38.1 cm (15″). This lamp is ideal for leak detection, identification of bacteria, as well as for performing NDT outdoors, for example in the Oil and Gas industry.
As all Labino UV lamps SB Hera is waterproof (IP68) and penetrant resistant. The battery-operated model comes with a charging PSU and can be charged and operated simultaneously.
Models
SB Hera battery
SB Hera is designed for applications requiring a super high intensity of > 90 000 μW/cm2 at 38.1 cm/15″.
P/N L1095: SB Hera DUO
P/N L1096: SB Hera Mains
SB Hera Mains kit contents
SB Hera Mains kit includes:
|
SB Hera Duo kit contents
SB Hera DUO kit includes:
|
Additional information
Shoulder strap
The SB Hera lamps come with a shoulder strap to release weight and ease climbing while inspecting.
Pistol handle adaptor
For easier mounting on a flexible arm, an adaptor is available for the SB Hera pistol handle. The hole inside the adaptor suits most standard flexible arms in use on magnetic benches.
Technical Specification
| Model | Part.No. | Battery/Mains | UV-A LED | Peak UV irradiance (μW/cm²) at 38.1 cm (15”) | Weight (with batteries) | Beam diameter (> 1000 µW/cm²) | Battery running time | IP68 | Warranty |
|---|---|---|---|---|---|---|---|---|---|
SB Hera | L1095 | Battery | 8 | 90.000 | 1.65 kg (3.6 lb) | 17.5 cm (6.9”) | 4h | Yes | 2 years |
L1096 | Mains | 8 | 90.000 | 2.1 kg (4.6 lb) | 17.5 cm (6.9”) | YES | 2 Years |
Compliances
| Model | Part.No. | ASTM E3022 | ISO 3059-12 |
|---|---|---|---|
SB Hera | L1095 | Yes | Yes |
L1096 | Yes | Yes |
